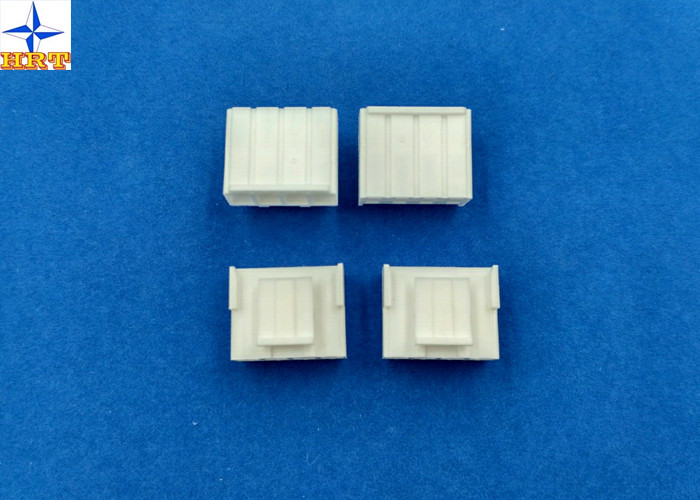

Zaciski SVH-21T Kompaktowe złącza akumulatorowe Jednorzędowa obudowa zaciskana VH

Zaciski SVH-21T Kompaktowe złącza akumulatorowe Jednorzędowa obudowa zaciskana VH

    • SVH-21T Terminals Compact Battery Connectors Single Row VH Crimp Housing
    • SVH-21T Terminals Compact Battery Connectors Single Row VH Crimp Housing
    • SVH-21T Terminals Compact Battery Connectors Single Row VH Crimp Housing
  • SVH-21T Terminals Compact Battery Connectors Single Row VH Crimp Housing

    Szczegóły Produktu:

    Place of Origin: Dongguan, China(mainland)
    Nazwa handlowa: HRT
    Orzecznictwo: ISO9001/ ISO14001/UL/RoHS/REACH
    Model Number: A3961HA-NP

    Zapłata:

    Minimum Order Quantity: 5000 pcs
    Cena: USD0.005 to 0.008 per pcs
    Packaging Details: Bag with outside paper carton
    Delivery Time: 5 to 8 working days after payment checked
    Payment Terms: TT, Western Union, PayPal, L/C
    Supply Ability: 28 million pcs per month
    Skontaktuj się teraz
    Szczegółowy opis produktu
    Obwody: 2 piny do 15 pinów Zamek krycia: Z
    Materiał terminala: mosiądz lub brąz fosforowy Średnica izolacji drutu: AWG18# do 22#
    Zakończ terminal: ocynkowany Odpowiednie zaciski: 3,00 mm Maks
    High Light:

    Złącza męskie

    ,

    złącze 6-stykowe

    ,

    złącza zaciskowe akumulatora Nylon66

    3.96mm pitch wire to board also battery terminal connectors A type precise alternatives



    1, The product specification



    Through the next datasheet, you will have a good understanding for our product. Besides, the interrelated

    product of this part like terminals, wafer(right angle or vertical) can be offered by us too.



     Basic size information
    Color White
    Material Nylon66
    Row Single
    Pitch 3.96mm
    Flammability UL94V-0
    Wire range A3961T series
    Terminal processing method E-stamping before tin-plated
    Part No. A3961HA-NP

                                                            Electrical properties
    Current Rating 7A AC, DC
    Voltage Rating 250V AC, DC
    Contact Resistance 10mΩ Max
    Insulation Resistance 1000mΩ min
    Withstanding Voltage 1500V AC/minute

                                                          Mechanical properties
    Temperature range -25℃ to 85 ℃
               Other information please kindly check the following picture.



    2, Related drawing and report



    You can get more characteristics from below picture, through this, you can know our product very clearly.

    Zaciski SVH-21T Kompaktowe złącza akumulatorowe Jednorzędowa obudowa zaciskana VH

    Zaciski SVH-21T Kompaktowe złącza akumulatorowe Jednorzędowa obudowa zaciskana VH

    Mechanical Performance



    Test Description Procedure Requirement
    5-1 Actuator Insertion & Withdrawal Force Insert and withdraw actuator at the speed rate of 25±3mm / minute. Refer to paragraph 7
    5-2 Crimping Pull Out Force Fix the crimped terminal, apply axial pull out force on the wire at the speed rat of 25±3mm / minute.(Based upon JIS C5402 6.8) AWG#18 9.0 kgf (Min.)
    AWG#20 6.0 kgf (Min.)
    AWG#22 4.0 kgf (Min.)
    5-3 Terminal Insertion Force. Insert the crimped terminal into the housing. 1.50 kgf (Max.)
    5-4 Terminal/Housing Retention Force. Apply axial pull out force at the speed rate of 25±3mm / minute on the terminal assembled in the housing. 3.00 kgf (Min.)
    5-5 Pin Retention Force Apply axial pull out force at the speed rate of 25±3mm / minute. 3.00 kgf (Min.)
    5-6 Durability When mated up to 50 cycles repeatedly by the rate of 10 cycle per minute. Contact Resistance 20mΩ (Max.)
    5-7 Vibration

    Amplitude: 1.5mm P-P

    Sweep time: 10-55-10 Hz in 1 minute Duration: 2 hours in each X.Y.Z. axes.

    (Based upon MIL-STD-202 Method 201A)

    Appearance No Damage.

    Contact Resistance 20mΩ (Max.)

    Discontinuity 1 μsec.(Max.)

    5-8 Physical Shock 490m/s²{50G},3 strokes in each X.Y.Z. axes. (Based upon JIS C0041/MIL-STD-202 Method 213B Cond. A)




    3, Product's featurs



    This small, field-proven connector for printed circuit boards is reliable and has a large current carrying capacity. It can be used with a wide variety of signal, power supply, and output circuits that appear in
    consumer electronic products.



    · Proven box contact


    · Compact connector with a large capacity


    · Secure contact and mounting



    4, Our strength

    1. Well and high quality control
    2. Prompt delivery
    3. Small order acceptable
    4. Perfect craft procedure
    5. Customer's designs are welcome
