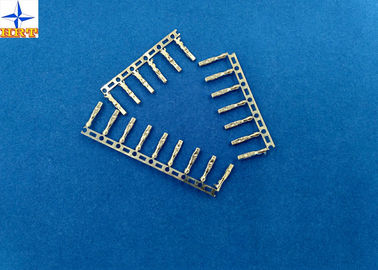

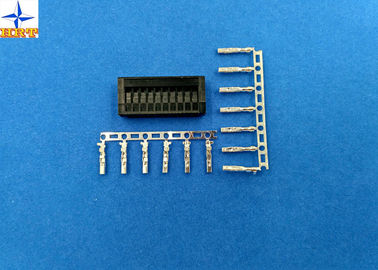

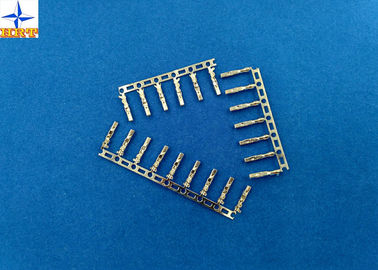

Crimp Wire Connector Terminals Tin Plated Phosphor Bronze Connectors For AWG30# To 26#

Chiny Crimp Wire Connector Terminals Tin Plated Phosphor Bronze Connectors For AWG30# To 26# dostawca
Crimp Wire Connector Terminals Tin Plated Phosphor Bronze Connectors For AWG30# To 26# dostawca Crimp Wire Connector Terminals Tin Plated Phosphor Bronze Connectors For AWG30# To 26# dostawca Crimp Wire Connector Terminals Tin Plated Phosphor Bronze Connectors For AWG30# To 26# dostawca

Duży Obraz :  Crimp Wire Connector Terminals Tin Plated Phosphor Bronze Connectors For AWG30# To 26#

Szczegóły Produktu:

Place of Origin: Dongguan, China(mainland)
Nazwa handlowa: HRT
Orzecznictwo: ISO9001/ ISO14001/UL/RoHS/REACH
Model Number: A2001-TPE

Zapłata:

Minimum Order Quantity: 50K PCS
Cena: Negotiated
Packaging Details: paper tray with out carton
Delivery Time: 5 to 8 working days after payment checked
Payment Terms: TT, Western Union, PayPal, L/C
Supply Ability: 100 million pcs per month
Szczegółowy opis produktu
Pitch: 2.0mm wire range: AWG#30 - #26
Material: Phosphor Bronzne Finish: Tin-plated or Gold-flash
Connector Type: wire connnector Terminal Insulation O.D: 1.30mm(Max)
High Light:

Crimp Terminal Connector

,

Connector Crimp Terminal



1, The specification of the product including basic size information, electrical and mechanical properties.

Basic size information
Termination Interface Style crimp or compression
Processing methods E-stamping before tin-plated or gold-flash
Insulation O.D. 1.30mm(Max)
Part No. A2001-TPE or A2001-GPE
Mated connector A2001H/HB series or A2009H series
Application Signal, wire to board type

Electrical properties
Current Rating 2 A AC, DC
Voltage Rating 100V AC, DC
Contact Resistance 10mΩ Max
Insulation Resistance 1000 MΩ min
Withstanding Voltage 800V AC/minute

Mechanical properties
Temperature range -25℃ to 85 ℃
Other information please kindly check the following picture.






2, Related drawing and report

The following pictures are engineering drawing and testing report for your reference, wish these can help you to purchase the ideal and right parts from us. Thank you!

Crimp Wire Connector Terminals Tin Plated Phosphor Bronze Connectors For AWG30# To 26#

3. Ratings & Applicable Wires



Item Standard
Rated Voltage (Max.) 100V AC/DC Insulation O.D. 1.50mm (Max.)
Rated Current (Max.) And Applicable Wires AWG#24 2.0A AC/DC
AWG#26 1.5A AC/DC
AWG#28 1.0A AC/DC
AWG#30 0.5A AC/DC
Ambient Temperature Range -25℃ ~ +85℃*

*: Including terminal temperature rise





4. Electrical Performance



Test Description Procedure Requirement
4-1



Contact Resistance



Mate connectors, measure by dry circuit, 20mV max., 10mA.(Based upon JIS C5402 5.4) 10mΩ (Max.)
4-2 Insulation Resistance Mate connectors, apply 500V DC between adjacent terminal or ground. (Based upon JIS C5402 5.2/MIL-STD-202 Method 302 Cond. B) 1000MΩ (Min.)
4-3 Dielectric Withstanding Voltage Mate connectors, apply 800V AC (rms) for 1 minute between adjacent terminal or ground. (Based upon JIS C5402 5.1/MIL-STD-202 Method 301) No Breakdown.
4-4 Contact Resistance on Crimped Portion Crimp the applicable wire on to the terminal, measure by dry circuit, 20mV (Max.)., 10mA. 5mΩ (Max.)







3, FAQ


Q:Do you allow multiple design per setup?
A:Yes.We accept OEM/ODM service and allow multiple design per setup.

Q:How long does shipping take?
A:It depends on the destination location and quantity. In most developed country, delivery by Fed x/UPS/DHL is normally 2-3 days(excluding weekends).

Q: How is the goods packaged ?
A: Usually in PE bads, tube, pipe and with outside carton box.



4, we can offer multiple, safe and fast shippment for you!

We have very good cooperation with world famouse delivery company, and the can offer us good service and favorable price. It's sure that every business between us will be fast and happy. Choose us! Let's connect the realistic and electronic world.
