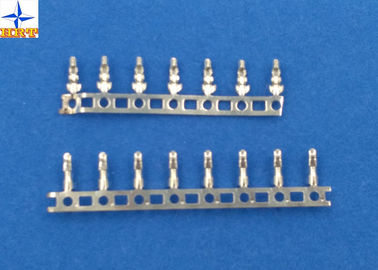

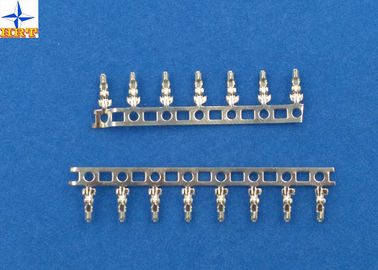

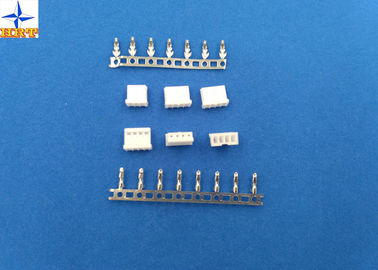

1.50mm Pitch AWG#22 - 28 Wire Connector Terminals Phosphor Bronze / Tin - Plated Contact

Chiny 1.50mm Pitch AWG#22 - 28 Wire Connector Terminals Phosphor Bronze / Tin - Plated Contact dostawca
1.50mm Pitch AWG#22 - 28 Wire Connector Terminals Phosphor Bronze / Tin - Plated Contact dostawca 1.50mm Pitch AWG#22 - 28 Wire Connector Terminals Phosphor Bronze / Tin - Plated Contact dostawca 1.50mm Pitch AWG#22 - 28 Wire Connector Terminals Phosphor Bronze / Tin - Plated Contact dostawca

Duży Obraz :  1.50mm Pitch AWG#22 - 28 Wire Connector Terminals Phosphor Bronze / Tin - Plated Contact

Szczegóły Produktu:

Place of Origin: China
Nazwa handlowa: HRT
Orzecznictwo: ISO9001/ ISO14001/UL/RoHS/REACH
Model Number: A1501

Zapłata:

Minimum Order Quantity: 5000 PCS
Cena: Negotiated
Packaging Details: paper tray with out carton
Delivery Time: 5 to 8 working days after payment checked
Payment Terms: TT, Western Union, PayPal, L/C
Supply Ability: 1000 pcs per day
Szczegółowy opis produktu
Product Name: A1501-TPE Pitch: 1.50mm
Finish: Tin-plated Material: TER: Phosphor Bronzne
Insulation O.D,: 1.15mm(max) Fire-protection rating: UL 94V-0
Used in: A1501 series housing wire range: AWG#22--#28
High Light:

Crimp Wire Connectors

,

Connector Crimp Terminal

Description:

1. A1501 series Terminals are stamped by Phosphor Bronze, E-Stamping beforeTin-plated , Tin-plated we calling A1501-TPe , Minimum packing quantity is 20,000pcs/Reel. The daily production capacity is 300 to 400 KPCS.

2. Terminals' wire range :AWG #22--#28insulation OD is0.90mm(Max).

3.  A1501 series terminal Used in  A 1501series  housing



Actuator Insertion/Withdrawal Force:



1.50mm Pitch AWG#22 - 28 Wire Connector Terminals Phosphor Bronze / Tin - Plated Contact



Test Description Procedure Requirement

Contact Resistance

Mate connectors, measure by dry circuit, 20mV max., 10mA.(Based upon JIS C5402 5.4)    20mΩ (Max.)
Insulation Resistance Mate connectors, apply 500V DC between adjacent terminal or ground. (Based upon JIS C5402 5.2/MIL-STD-202 Method 302 Cond. B)    1000MΩ (Min.)
Dielectric Withstanding Voltage Mate connectors, apply 800V AC (rms) for 1 minute between adjacent terminal or ground. (Based upon JIS C5402 5.1/MIL-STD-202 Method 301))    No Breakdown.
Contact Resistance on Crimped Portion Crimp the applicable wire on to the terminal, measure by dry circuit, 20mV (Max.)., 10mA.     5mΩ (Max.)



Electrical:

Current rated
     3A AC/DC maximum
Voltage rated      350V AC/DC
Withstand voltage      500V AC/minute
Insulation resistance     1000MΩ min
Contact resistance      20MΩ max
Operating temperature      -25 - 85°C





Drawing:


1.50mm Pitch AWG#22 - 28 Wire Connector Terminals Phosphor Bronze / Tin - Plated Contact

Quality:



The world's xinpei Plastic& metal electronic Co.,Ltd.to provide customers with high efficiency service responsibility, forge ahead, the endess pursuit

Except the plating ,From Design tooling, stamping ,Injection molding, assemble, Testing ,packing .All the
step are doing by ourself. So we can control the quality.



1. Manufactured under strict controls.

2. ISO 9001:2008

3. UL Certification

4. Reach Cetitifaction

5. RoHS compliance

6. OEM for PULSE

7. Active Environmental policy

8. Every module tested 3times (not just batch tested)
