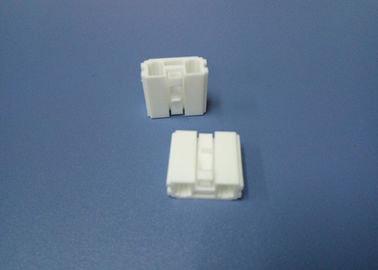

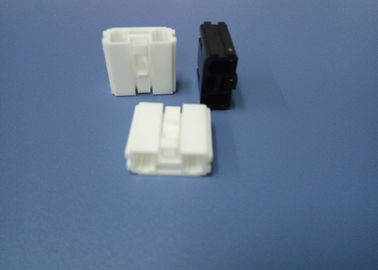

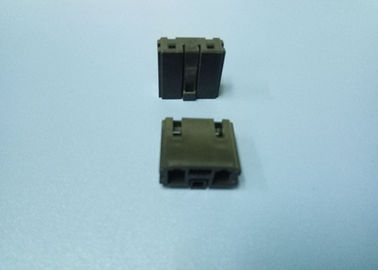

One Row Circuit Board Wire Connectors Pitch 3.96mm 02p To 15p PA66 Housing

Chiny One Row Circuit Board Wire Connectors Pitch 3.96mm 02p To 15p PA66 Housing dostawca
One Row Circuit Board Wire Connectors Pitch 3.96mm 02p To 15p PA66 Housing dostawca One Row Circuit Board Wire Connectors Pitch 3.96mm 02p To 15p PA66 Housing dostawca One Row Circuit Board Wire Connectors Pitch 3.96mm 02p To 15p PA66 Housing dostawca

Duży Obraz :  One Row Circuit Board Wire Connectors Pitch 3.96mm 02p To 15p PA66 Housing

Szczegóły Produktu:

Place of Origin: China
Nazwa handlowa: HRT
Orzecznictwo: ISO9001/ ISO14001/UL/RoHS/REACH
Model Number: A3961-2

Zapłata:

Minimum Order Quantity: 5000 PCS
Cena: Negotiated
Packaging Details: Carton / Paper pots
Delivery Time: 5 to 8 working days after payment checked
Payment Terms: TT, Western Union, PayPal, L/C
Supply Ability: 1000 pcs per day
Szczegółowy opis produktu
Product Name: A3961-2 Housing Pitch: 3.96mm
The Number of pin: 02PIN ~15PIN Material: HSG: PA66
Row: single Fire-protection rating: UL 94V-0 /UL94-V2
Color: black white Mates with: A3961 series wafer
suitable: A3961 sreies terminal
High Light:

Circuit Board Connections

,

Pcb Connectors Wire To Board



Circuit board Wire connectors pitch 3.96mm 02p to 15p PA66 housing





Description:



1. A3961-2 series housing  have A3961H-2-NP (suitable A3961 series terminal)

2, Housing  used materials: PA66, Halogen Free , Fire-protection rating is UL 94-V0   94-V2 . Minimum packing quantity is 1000pcs/bag.

3. Single row housing we have 2P~15P,The daily production capacity is 30 to 50 KPCS.







Test Description Procedure Requirement

Contact Resistance

Mate connectors, measure by dry circuit, 20mV max., 10mA.(Based upon JIS C5402 5.4)    20mΩ (Max.)
Insulation Resistance Mate connectors, apply 500V DC between adjacent terminal or ground. (Based upon JIS C5402 5.2/MIL-STD-202 Method 302 Cond. B)    1000MΩ (Min.)
Dielectric Withstanding Voltage Mate connectors, apply 800V AC (rms) for 1 minute between adjacent terminal or ground. (Based upon JIS C5402 5.1/MIL-STD-202 Method 301))    No Breakdown.
Contact Resistance on Crimped Portion Crimp the applicable wire on to the terminal, measure by dry circuit, 20mV (Max.)., 10mA.     5mΩ (Max.)



Electrical:



Current rated
    7A AC/DC maximum
Voltage rated       250V AC/DC
Withstand voltage      1500V AC/minute
Insulation resistance      1000MΩ min
Contact resistance      10MΩ max
Operating temperature      -25 - 85°C







One Row Circuit Board Wire Connectors Pitch 3.96mm 02p To 15p PA66 Housing



                                                          Machining center



One Row Circuit Board Wire Connectors Pitch 3.96mm 02p To 15p PA66 Housing



Quality:



The world's xinpei Plastic& metal electronic Co.,Ltd.to provide customers with high efficiency service responsibility, forge ahead, the endess pursuit

Except the plating ,From Design tooling, stamping ,Injection molding, assemble, Testing ,packing .All the
step are doing by ourself. So we can control the quality.



1. Manufactured under strict controls.

2. ISO 9001:2008

3. UL Certification

4. Reach Cetitifaction

5. RoHS compliance

6. OEM for PULSE

7. Active Environmental policy

8. Every module tested 3times (not just batch tested)
