| Place of Origin: | Dongguan, China(mainland) |
| Nazwa handlowa: | HRT |
| Orzecznictwo: | ISO9001/ ISO14001/UL/RoHS/REACH |
| Model Number: | A1254H-NP |
| Minimum Order Quantity: | 5000 pcs |
|---|---|
| Cena: | Negotiated |
| Packaging Details: | Bag with outside carton |
| Delivery Time: | 5 to 8 working days after payment checked |
| Payment Terms: | TT, Western Union, PayPal, L/C |
| Supply Ability: | 600K pcs per month |
| Category: | Crimp Housings | Application: | Power, Wire-to-Board |
|---|---|---|---|
| Material: | PA66 | Wire range: | AWG28# to 32# |
| Flammability: | UL94V-0 | Gender: | female |
| Podkreślić: | Pcb To Wire Connectors,Board To Wire Connectors |
||
1, The specification of the product including basic size information, electrical and mechanical properties.
| Basic size information | |||
| Suitable terminals | A1007T series | ||
| Suitable wafer | A1254 series | ||
| Pitch | 1.25mm | ||
| Color | white | ||
| Row | single | ||
| Lock to mating part | without | ||
| Circuits | 2 to 30 pins | ||
| Wire insulation diameter | 0.90mm Max. | ||
| Terminal materials | phosphor bronze, gold-flash | ||
| Electrical properties | |||
| Current Rating: | 1A AC, DC | ||
| Voltage Rating | 125V AC, DC | ||
| Contact Resistance: | 20mΩ Max | ||
| Insulation Resistance: | 100mΩ min | ||
| Withstanding Voltage: | 500V AC/minute | ||
| Mechanical properties | |||
| Temperature range | -25℃ to 85 ℃ | ||

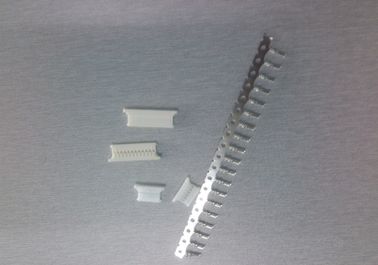

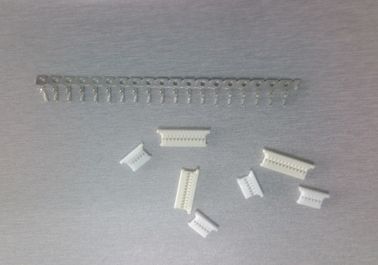

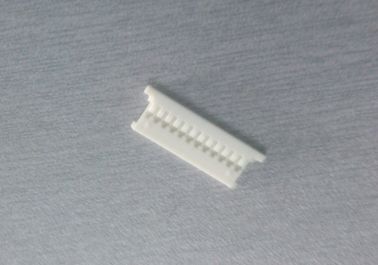

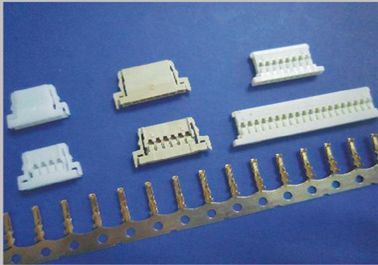

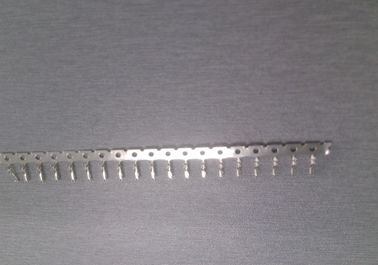

| Other information please kindly check the following picture. | |||
2, Related drawing and report
Folllowing pictures are out testing report and exact engineering drawing for your information, please kindly check it, wish it can help you to get what you really need.
3, Application fied of these product
This product is developed for PDP, LCD, or small electronics equipment. Because we can controll NPL ratio under 1.15%, so our parts are accepted by famouse and international company like TPV, LeTV, Emerson, Amphenol Corporation, LuXshare, BYD etc. And the all products are certificated by REACH, UL, RoHS. In order to protect the evironment, some parts are halogen free.
4, we can offer various fast delivery way for you .
We have very good cooperation with world famouse delivery company, and the can offer us good service and favorable price. It's sure that every business between us will be fast and happy. Choose us! Let's connect the realistic and electronic world.
