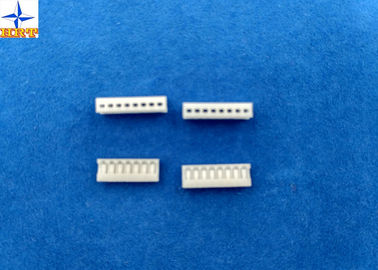

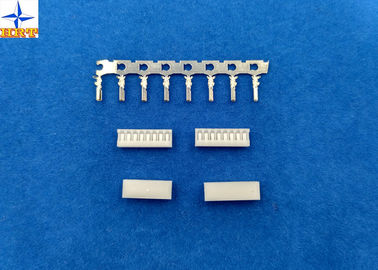

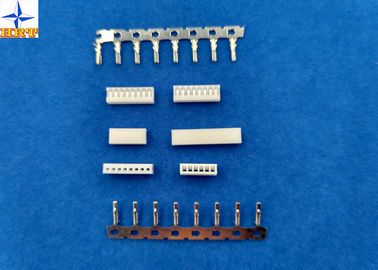

1.25mm Pitch Board-in Housing, 2 to 15 Circuits Single Row Crimp Housing for Signal Application

1.25mm Pitch Board-in Housing, 2 to 15 Circuits Single Row Crimp Housing for Signal Application

    • 1.25mm Pitch Board-in Housing, 2 to 15 Circuits Single Row Crimp Housing for Signal Application
    • 1.25mm Pitch Board-in Housing, 2 to 15 Circuits Single Row Crimp Housing for Signal Application
    • 1.25mm Pitch Board-in Housing, 2 to 15 Circuits Single Row Crimp Housing for Signal Application
  • 1.25mm Pitch Board-in Housing, 2 to 15 Circuits Single Row Crimp Housing for Signal Application

    Szczegóły Produktu:

    Place of Origin: Dongguan, China(mainland)
    Nazwa handlowa: HRT
    Orzecznictwo: ISO9001/ ISO14001/UL/RoHS/REACH
    Model Number: B1259HR-NP

    Zapłata:

    Minimum Order Quantity: 5000 pcs
    Cena: USD0.001 to 0.5 per pcs
    Packaging Details: Bag with outside carton
    Delivery Time: 5 to 8 working days after payment checked
    Payment Terms: TT, Western Union, PayPal, L/C
    Supply Ability: 28 million pcs per month
    Skontaktuj się teraz
    Szczegółowy opis produktu
    Category: Crimp Housings Suitable terminals: B1259HR series
    PC board mounting direction: Right angle type Wire range: AWG32# to 28#
    Flammability: UL94V-0 Row: Single

    1, The specification of the product including basic size information, electrical and mechanical properties.



      Basic size information
    Color White
    Pitch 1.25mm
    Contacts type Right angle
    Material PA66
    Category Crimp Housings
    Application Signal
    Circuits 2 to 15pins
    Wire insulation diameter  1.00mm Max.
    Terminal material Phosphor Bronze
    Finish terminal Tin-plated

                                                              Electrical properties
    Current Rating 1A AC, DC
    Voltage Rating 125V AC, DC
    Contact Resistance 20mΩ Max
    Insulation Resistance 100MΩ min
    Withstanding Voltage 500V AC/minute

                                                              Mechanical properties
    Temperature range -25℃ to 85 ℃
                               Other information please kindly check the following picture.







    2, Related drawing and report

    Folllowing pictures are out testing report and exact engineering drawing for your information, please kindly check it, wish it can help you to get what you really need.

    1.25mm Pitch Board-in Housing, 2 to 15 Circuits Single Row Crimp Housing for Signal Application




    3, Application fied of product

    This product is very ideal for VCRs, car stereo system, audio parts and many other consumer oriented electronics product. It is with strong structure against external force. And it is wildly seted in most of household appliance, computer, communication device. We also can controll defective rate under a low value, so our prodcut are welcomed and trusted by famouse and international company like TPV, LeTV, Emerson, Amphenol Corporation, Skyworth, LuXshare, BYD etc. And the all products are certificated by REACH, UL, RoHS. In order to protect the evironment, some parts are halogen free.





    4, Our comprehensive service

    We can offer better service for you in order to have a long and two-win business relationship, also to build personal friendship.
