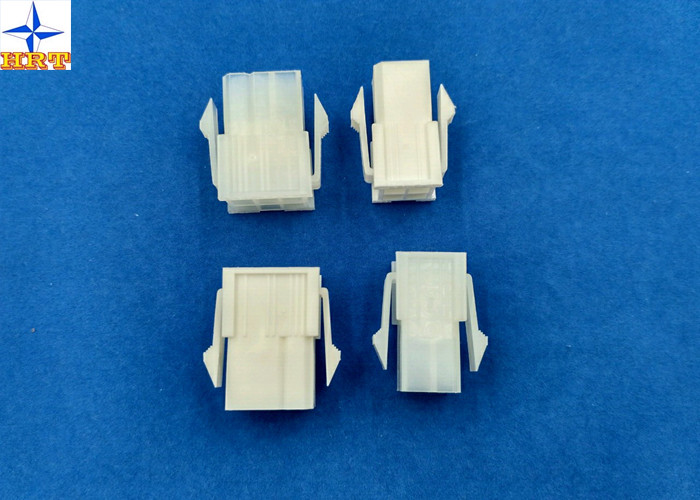

Dual Row 4.20mm Power Connectors For Signal 2 to 24 Circuits Plug Housing UL 94V-0

Dual Row 4.20mm Power Connectors For Signal 2 to 24 Circuits Plug Housing UL 94V-0

    • Dual Row 4.20mm Power Connectors For Signal 2 to 24 Circuits Plug Housing UL 94V-0
    • Dual Row 4.20mm Power Connectors For Signal 2 to 24 Circuits Plug Housing UL 94V-0
    • Dual Row 4.20mm Power Connectors For Signal 2 to 24 Circuits Plug Housing UL 94V-0
  • Dual Row 4.20mm Power Connectors For Signal 2 to 24 Circuits Plug Housing UL 94V-0

    Szczegóły Produktu:

    Place of Origin: Dongguan, China(mainland)
    Nazwa handlowa: HRT
    Orzecznictwo: ISO9001/ ISO14001/UL/RoHS/REACH
    Model Number: C4255HM-2XNP

    Zapłata:

    Minimum Order Quantity: 5000pcs
    Cena: negotiated
    Packaging Details: Reel, Tube(Pipe), Tape, Bag or as required
    Delivery Time: 5 to 8 working days after payment checked
    Payment Terms: TT, Western Union, PayPal, L/C
    Supply Ability: 28000K pcs per month
    Skontaktuj się teraz
    Szczegółowy opis produktu
    Category: Power cable connector Row No.: Dual
    Locking structure: With Wire range: AWG26# to 22#
    Application: Power, wire to wire Matched housing: C4255HF series dual row

    1, Detailed specification of product:
           1. Basic information:

    • Color: White
    • Housing Material: Nylon66
    • Flammability: 94V-0/2
    • Pitch:4.20 mm
    • Circuits: 2 to 24 positions
    • Insulation O.D.: 3.10mm
    • Terminal materials: Phosphor bronze/Brass
    • Finish terminal: Tin-plated type
    • Matched terminal: C4255M series terminal

           2. Electrical characteristic:

    • Current Rating: 9A AC DC
    • Voltage Rating: 600V AC, DC
    • Contact Resistance: 10mΩ Max
    • Insulation Resistance: 1000MΩ
    • Withstanding Voltage:  1500V AC/minute

          3. Mechanical characteristic:

    • ​​Temperature Range:-25°C ~+85°C
    • Terminal Insertion Force: 1.50kgf (Max.)
    • Terminal/Housing Retention Force: 3.00kgf (Min.)
    • Pin Retention Force: 3.00kgf (Min.)
    • Latch Yield Strength:7.0kgf (Min.)
    • Panel Mount Retention Force: 16.0kgf (Min.)

    2, Ordering Code
    Please kindly check below table to know this series product. If you need them, we can offer set price for you, it will be very favorable.


    C4255 series product
    Terminal
     C4255F-T and C4255M-T
    Connector
              Single row type           Dual row type
     C4255HF-NP & C4255HMNP & C4255HMA-NP

    C4255HF-2XNP & C4255HM-2XNP & C4255HMA-2XNP



     Wafer
                 Single row type     Dual row type
    C4255WV-NP & C4255WR-NP & C4255WR-F-NP

    C4255WV-2XNP &C4255WR-2XNP & C4255WR-F-2XNP






    3, Related engineering drawing and testing report
    The attached picture is our standard engineering drawing and report for your reference, it will help you to
    know our product feature, then you can choose the right models.


                                                                   dimension drawing
    Dual Row 4.20mm Power Connectors For Signal 2 to 24 Circuits Plug Housing UL 94V-0
    Dual Row 4.20mm Power Connectors For Signal 2 to 24 Circuits Plug Housing UL 94V-0


    3, FAQ



    Q: Can we have our own brand packaging? How?
    A: Yes,we have designer in house to meet customized packaging requirment, all you have to do is let us know your idea or demands.



    Q: Does your products print exactly the same as original?
    A: Compatible products were known for its favourable prices and accurate size as originals.



    Q: What is your MOQ for sample order?
    A: All size sample orders are welcome.we do understand your idea to increase order gradually.



    Q: What about guarantee?
    A: One on one exchange for defectives exceed our guarantee rate.
