| Place of Origin: | Dongguan, China(mainland) |
| Nazwa handlowa: | HRT |
| Orzecznictwo: | ISO9001/ ISO14001/UL/RoHS/REACH |
| Model Number: | A2548WV-2XNP |
| Minimum Order Quantity: | 5000 pcs |
|---|---|
| Cena: | USD0.001 to 0.5 per pcs |
| Packaging Details: | Tube(pipe) with outside paper carton |
| Delivery Time: | 5 to 8 working days after payment checked |
| Payment Terms: | TT, Western Union, PayPal, L/C |
| Supply Ability: | 28 million pcs per month |
| Color: | Black | Pitch: | 2.54mm |
|---|---|---|---|
| Wafer materials: | PBT, UL94V-0 | Wire range: | AWG22# to 28# |
| Packaging Type: | Tube | Pins material: | Brass or gold-plated |
| High Light: | Circuit Board Connectors,Wire To Board Connector |
||

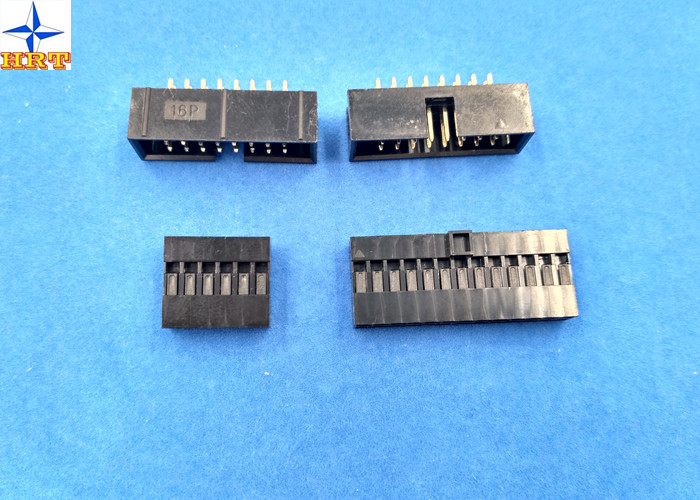

180 Degree Box Header Wafer Connector 2.54mm Pitch Type Vertical
1, Detailed specification table of product
| Detailed information | ||||
|
Basic information |
Type | Wafer | ||
| Circuits | From 6 pins to 64 pins | |||
| Insulation O.D. | 1.63mm(Max) | |||
| Mating lock | None | |||
| Mated housing | A2546 dual row series | |||
| Mounting methods | Top entrance | |||
| Electrical properties | Current Rating | 3A AC, DC | ||
| Voltage Rating | 250V AC, DC | |||
| Contact Resistance | 20mΩ Max | |||
| Insulation Resistance | 1000mΩ min | |||
| Withstanding Voltage | 1500V AC/minute | |||
| Mechanical properties | Temperature range | -25℃ to 85 ℃ | ||
| Other information please kindly check the following picture. | ||||
2, Corresponding engineering drawing
Below file is our engineering drawing and testing report for further information. It's sure that it will be a
good reference for you to know this series parts clearly.
3, FAQ
1) What's the delivery time?
Usually 5-8 days after payment received, longer for large order.
2) What’s the payment term?
Our payment terms: T/T, PayPal, Western Union, Moneygram, L/C, etc.
3) What's the shipping way?
Via DHL, FedEx, EMS, UPS, by air, by sea...etc.
4) Do you have after-sales service?
Yes. 8 hours online service
5) What is your guarantee for the goods?
We will replace 1:1 for the defective goods after sales.12 months guarantee after manufacturing.
